440TB - Interface C - Tee Connector
Up to 41,5 kV - 630 A (1250A) EUROMOLD tee connector
Standards
Product: CENELEC EN 50180
Test: CENELEC HD 629.1
About Product
Application
Separable tee shape connector (bolted type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors, ...). Also connects cable to cable when using the appropriate mating parts.
Technical characteristics
The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel. Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.

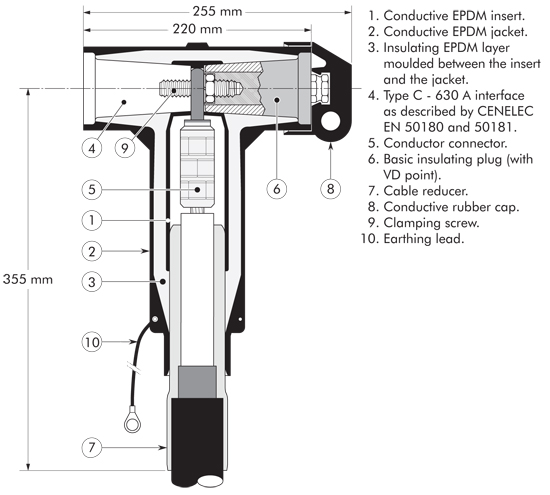

Design 440TB
Kit contents 440TB
Technical Specifications
Construction characteristics
Connector shape: T-shaped
Connector type: Outer cone
Conductor material: Copper or Aluminum
Technology: Slip-0n
Dimensional characteristics
Conductor cross-section, range: 185 ... 630 mm²
Electrical characteristics
Rated Voltage Uo/U (Um): 20,8/36 (42) kV
Maximal partial discharge at 2Uo: 10 pC
Dielectric withstand voltage, 50Hz 1mn: 93.5 kV
Impulse voltage: 200 kV
Usage characteristics
Interface: C (630 - 1250 A)
