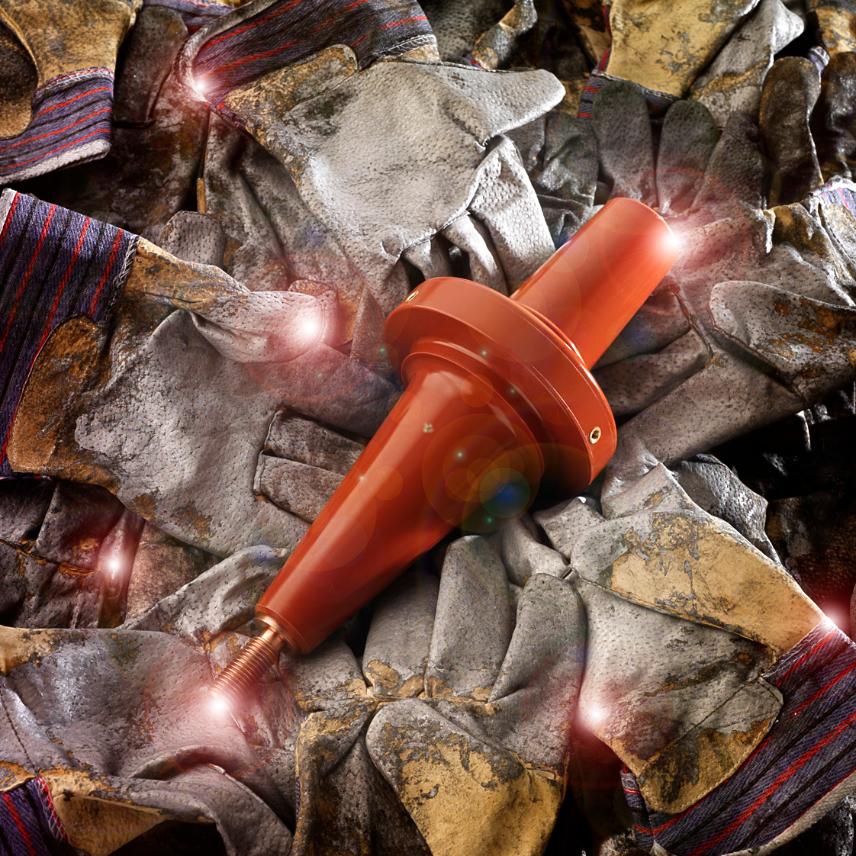

400AR-4 - Interface C - Equipment bushing
Up to 36 kV - 1250 A EUROMOLD Equipment bushing
Standards
Product: CENELEC EN 50180
International: IEC 60137
Application: For use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors...
About Product
Technical characteristics
Each bushing is tested for AC withstand and partial discharge prior to leaving the factory.
Design
Technical Specifications
Characteristics
Construction characteristics
Connector Shape: Bushing
Connector Type: Male
Conductor Material: Copper
Technology: Slip-On
Dimensional characteristics
Conductor cross-section, range: 0 ... 0 mm²
Electrical characteristics
Rated Voltage Uo/U (Um): 19 / 33 (36) kV
Maximal partial discharge at 2Uo: 10 pC
Dielectric withstand voltage, 50Hz 1mn: 85.5 kV
Impulse voltage: 194 kV
Usage characteristics
Interface: C (630 - 1250 A)
Documentation
400AR-4 catalogue page - Download
Separable screened connector systems - Download
400AR-4 installation instruction - Download
