800TR - Interface C - Test Rods
EUROMOLD Test Rods
The test rod can be used for: cable fault location, cable testing, phasing checks, etc. Connections can be made with a cable lug, a 4 mm plug or spring clips. The test rod is not suitable for PD (partial discharge) measurements
About Product

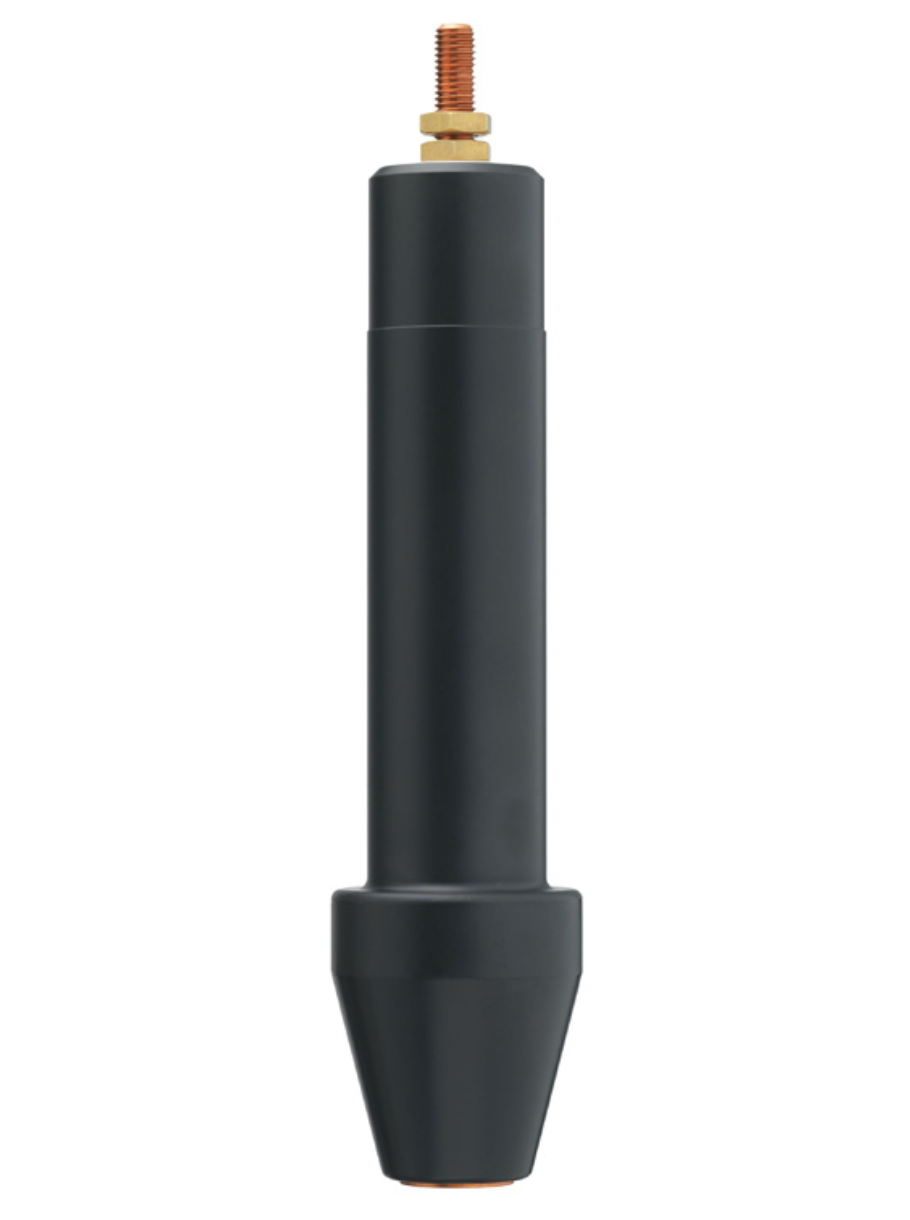

DESIGN
- Insulating shroud.
- Threaded rod for test connection.
- Two nuts M12.
- Insulation.
- Test rod stem.
An insulating shroud is provided to allow the application of test voltages when bushings are closely spaced.
Technical Specifications
INSTALLATION
The test rod is mounted on to the clamping screw in the separable tee and coupling connectors. The test cable is connected to the threaded stem and the insulating shroud moved to its final position over the end of the test rod.
DESIGN
- Insulating shroud.
- Threaded rod for test connection.
- Two nuts M12.
- Insulation.
- Test rod stem.
An insulating shroud is provided to allow the application of test voltages when bushings are closely spaced.
|
Test rod type |
Maximum A.C. test voltage (2 x U0 - 5 min) |
Maximum D.C. test voltage (30 min) |
Maximum impulse voltage (1.2 x 50 µs) |
Maximum VLF test voltage (3 x U0 - 60 min) |
|
800TR |
up to 42 kV |
96 kV |
95 kV |
up to 63 kV |
TECHNICAL CHARACTERISTICS
The 800TR test rod can be used with 480TB, 484TB and 489TB connectors and their coupling connectors. In mm.
ORDERING INSTRUCTIONS
Simply specify: 800TR.
